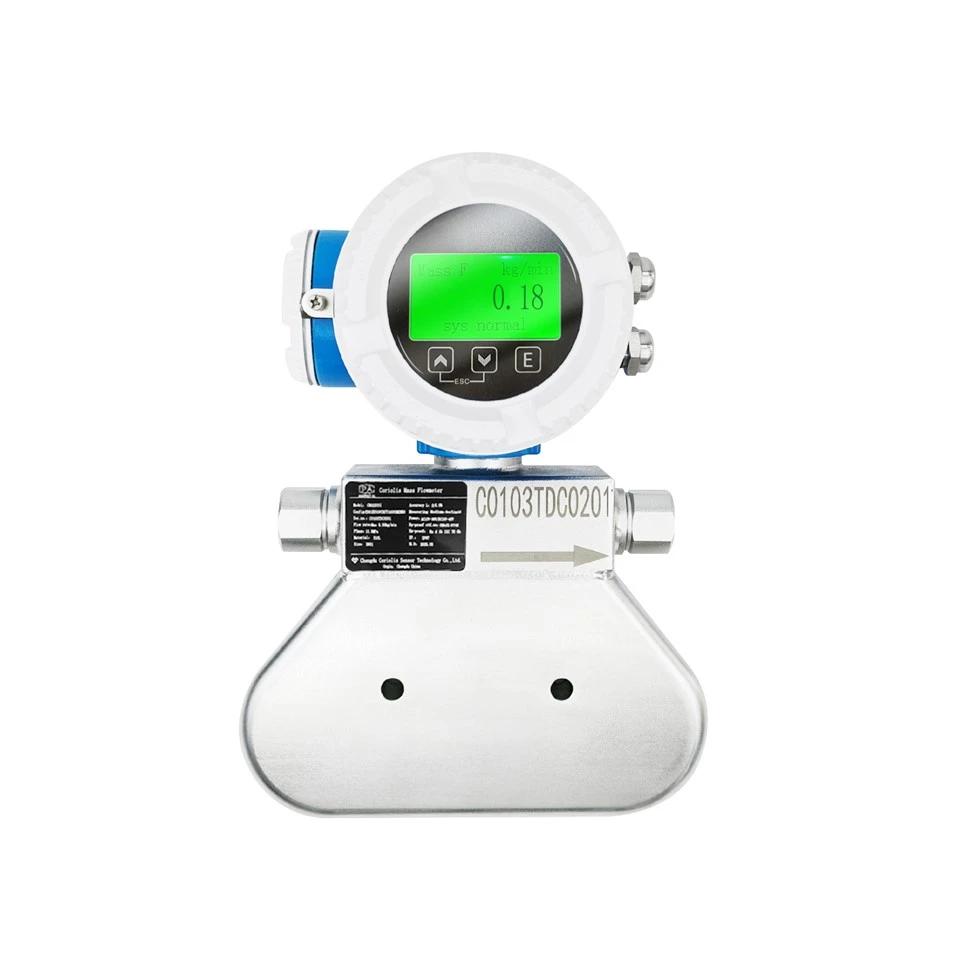

CMASS001TD Hydrogen refueling Coriolis mass flowmeter
Customer Pain Points & Our Solutions
- Pain Point: Difficult to measure micro-flow hydrogen under high pressure. Solution: Coriolis principle with high-sensitivity tubes for stability at low flow.
- Pain Point: Hydrogen embrittlement damages standard metals. Solution: Hydrogen-compatible stainless steel ensures long service life.
- Pain Point: Rapid flow variations during fueling cause inaccurate readings. Solution: High-speed electronics capture dynamic flow transitions.
- Pain Point: Limited space inside dispensers. Solution: Compact DN01 design with no straight-run requirement.
- Pain Point: Need for multi-parameter measurement in one device. Solution: Integrated mass, temperature, and density measurement.
Typical Applications
- Hydrogen Refueling Stations
- FCEV Dispensers
- Hydrogen Storage & Buffer Tanks
- Laboratory & R&D Test Benches
- High-Pressure Compressor Outlet
Selection Table
|
Model |
Nominal diameter |
Medium temp. |
Max.W.P |
Max. flow-rate |
||
|
inch |
mm |
kg/min |
Lb/min |
|||
|
CMASS001 |
1/12" |
DN01 |
-50℃～+150℃ |
≤45MPa |
0.2 |
0.44 |
